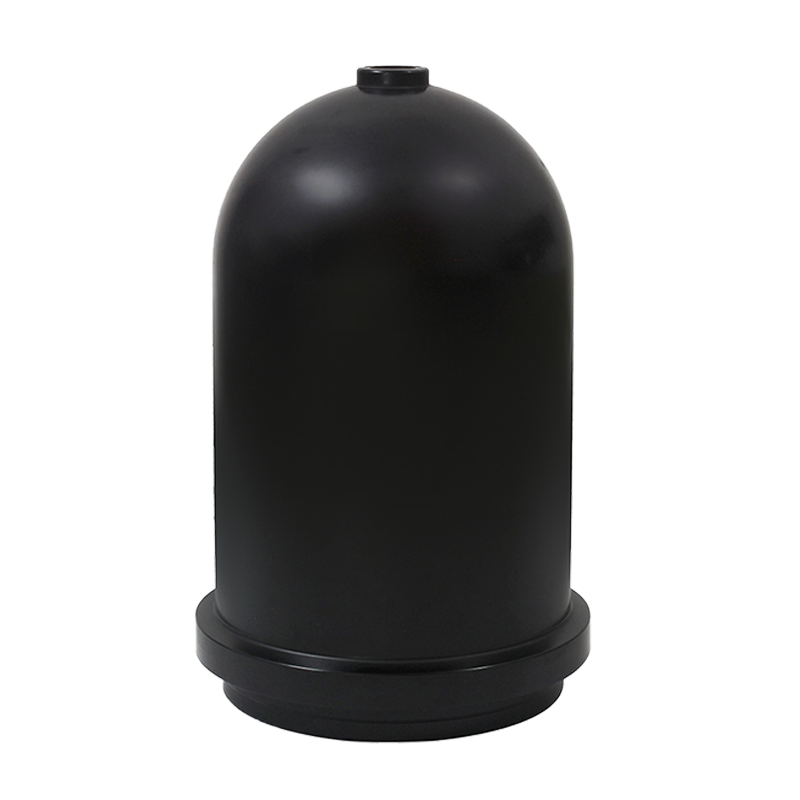

Plastic Water Filter Pot Injection Molding

How to avoid five common problems in injection molding of plastic parts?

Injection molding is a widely used manufacturing process for producing plastic parts with high precision and repeatability. However, there are several common problems that can occur during injection molding that can lead to defective parts and production downtime. Here are five common problems in injection molding of plastic parts and ways to avoid them:

Warpage: Warpage occurs when the plastic part experiences uneven cooling, leading to distortion and deformation. To avoid warpage, it's important to ensure that the mold temperature is consistent and that the cooling system is properly designed and maintained. Additionally, using an appropriate filling and packing pressure and speed can help reduce warpage.

Sink marks: Sink marks occur when the plastic part cools and contracts unevenly, resulting in visible depressions on the surface. To avoid sink marks, it's important to use a design that minimizes thick sections and includes uniform wall thickness throughout the part. Additionally, using appropriate injection speed and pressure, and cooling time and pressure can also help prevent sink marks.

Short shots: Short shots occur when the plastic does not fill the mold completely, resulting in a partially formed part. To avoid short shots, it's important to ensure that the mold temperature is consistent, and that the injection speed and pressure are appropriate for the plastic material being used. Additionally, it's important to ensure that the injection molding machine has sufficient capacity to fill the mold completely.

Flash: Flash occurs when excess plastic material escapes from the mold cavity and creates a thin layer of material on the part's surface. To avoid flash, it's important to ensure that the mold is properly designed and maintained, with appropriate venting and clamping force. Additionally, using appropriate injection speed and pressure, and cooling time and pressure can also help prevent flash.

Burn marks: Burn marks occur when the plastic material overheats and becomes discolored, resulting in black or brown marks on the surface. To avoid burn marks, it's important to ensure that the injection molding machine is properly calibrated and that the mold temperature and cooling system are properly designed and maintained. Additionally, using appropriate injection speed and pressure, and cooling time and pressure can also help prevent burn marks.

In summary, avoiding common problems in injection molding requires proper design, maintenance, and operation of the injection molding machine and mold. By taking the necessary steps to ensure consistent mold temperature, appropriate injection speed and pressure, and proper cooling time and pressure, manufacturers can produce high-quality plastic parts with minimal defects.

What are the common problems of plastic water filter jug injection molding?

Injection molding is a common manufacturing process for plastic water filter jugs, which are used to filter tap water and remove impurities. However, several common problems can occur during the injection molding of plastic water filter jugs, including:

Bubbles and voids: Bubbles and voids can occur when air is trapped in the plastic material during injection molding, resulting in defects in the water filter jug. This problem can be avoided by using appropriate injection speed and pressure, venting the mold properly, and avoiding excessive temperatures that can cause the plastic material to decompose and release gases.

Defective threads and seals: The threads and seals of the water filter jug are critical components that ensure a tight fit and prevent leaks. Defective threads and seals can occur due to improper design or inadequate injection molding parameters, resulting in a non-functional water filter jug. This problem can be prevented by ensuring that the mold is properly designed and maintained, with appropriate gating and ejection systems.

In summary, the common problems of plastic water filter jug injection molding can be addressed by ensuring proper mold design, maintenance, and operation. By taking the necessary steps to prevent warpage, sink marks, bubbles and voids, flash, and defective threads and seals, manufacturers can produce high-quality water filter jugs with minimal defects.

How are plastic water filter jugs made?

Plastic water filter jugs are typically made using injection molding, which is a manufacturing process that involves injecting molten plastic material into a mold cavity. The steps involved in making a plastic water filter jug using injection molding may include:

Design: The first step in the manufacturing process is to design the plastic water filter jug. This involves creating a 3D model of the jug using computer-aided design (CAD) software.

Mold creation: Once the design is finalized, a mold is created using CNC machines or other manufacturing tools. The mold is made from steel or aluminum and consists of two halves, the cavity and the core, which together form the shape of the jug.

Material preparation: The plastic material, typically a type of thermoplastic such as polypropylene or polycarbonate, is prepared by melting it down into a liquid form.

Injection molding: The molten plastic material is injected into the mold cavity under high pressure using an injection molding machine. The plastic fills the cavity and takes on the shape of the mold.

Cooling and ejection: Once the plastic has filled the mold cavity, it is allowed to cool and solidify. The mold is then opened and the plastic part, in this case the water filter jug, is ejected from the mold.

Finishing: The plastic water filter jug may then undergo additional finishing steps such as trimming excess material, drilling holes for the filter cartridge and handle attachment, and adding any necessary labeling or branding.

Quality control: Finally, the plastic water filter jugs are inspected and tested for quality to ensure they meet the required standards and specifications.
